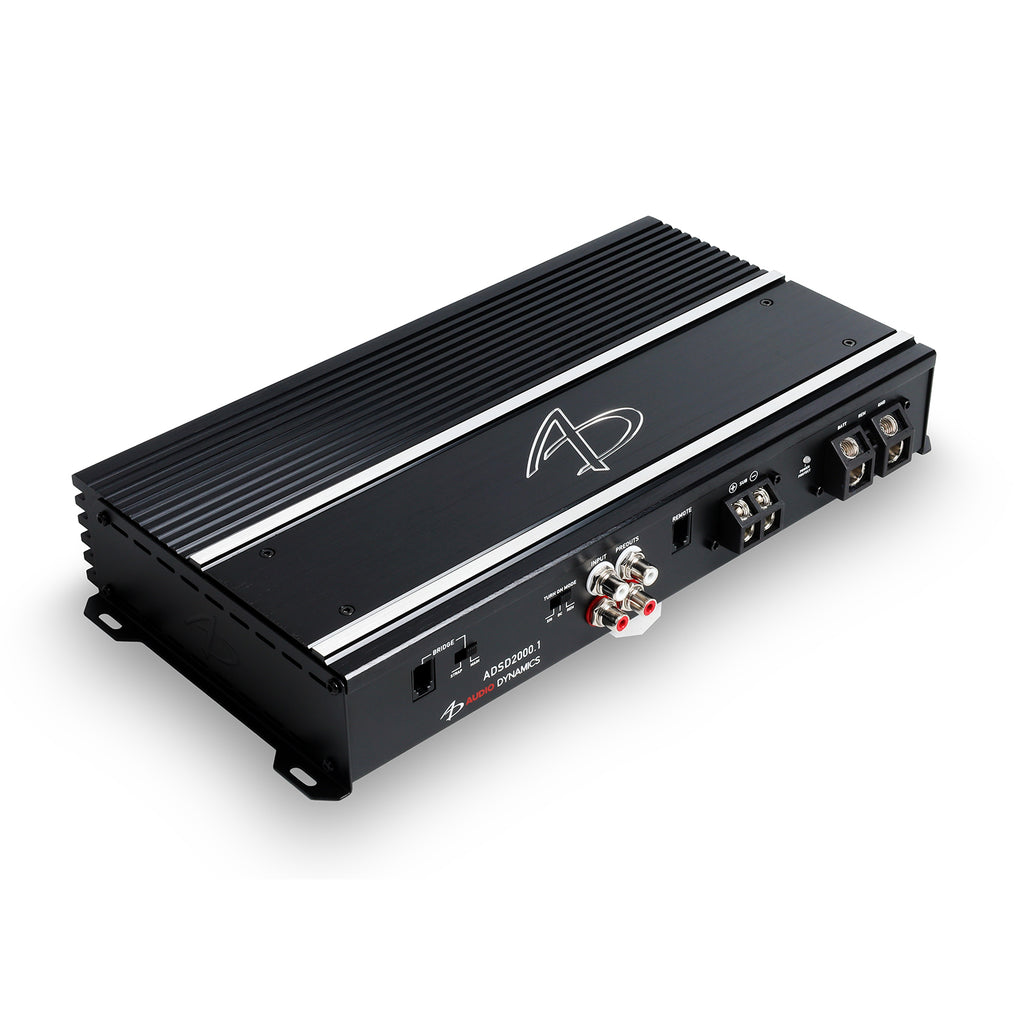

• 2000W Mono Block Class D

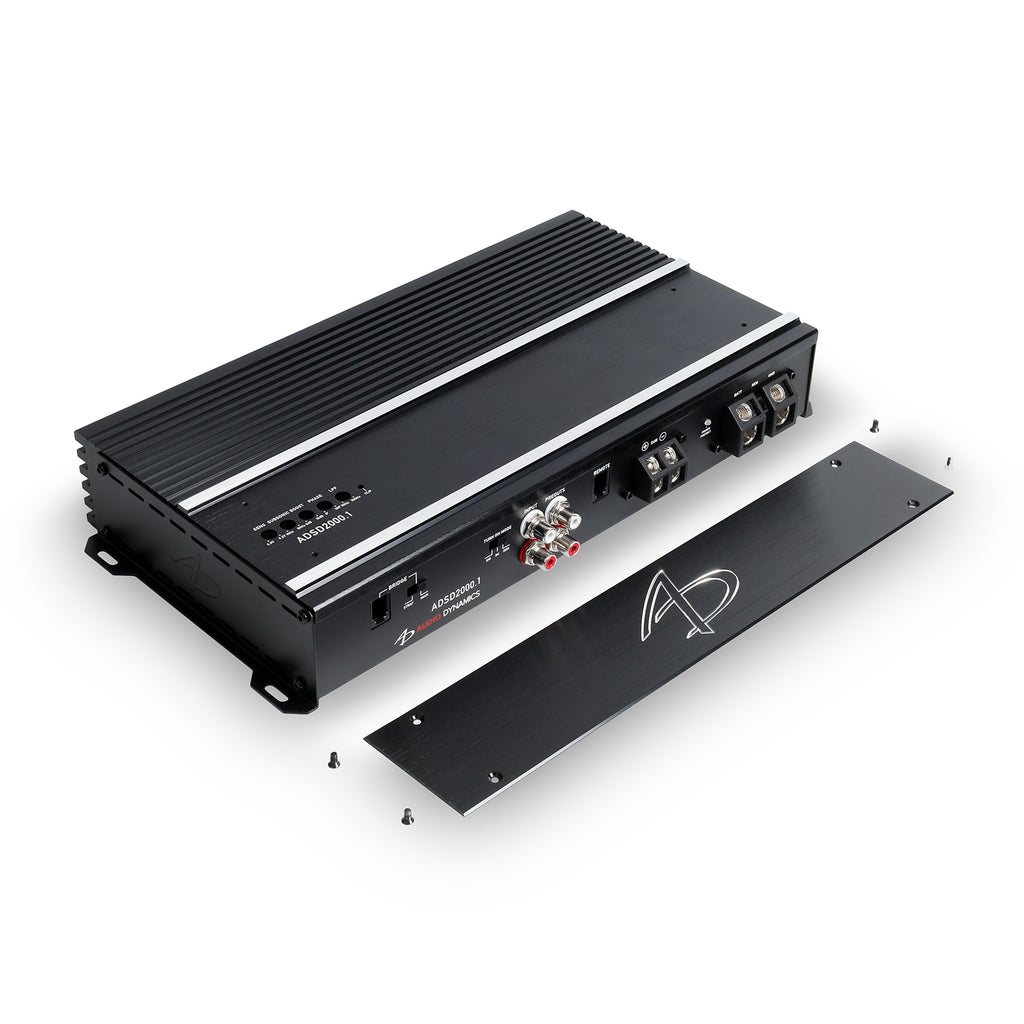

• Controls Under Reversible Cover
• Click-in-Place Crossover Controls
• Subsonic and Low Pass Filter
• Phase Control 0-180 Degrees
• Wired Level Control Included
• Low/High Level RCA Inputs
• Bolt-Thru RCA Connectors
• 2-Channel Pre-Outs
• Auto Turn On (DC/Signal)
• Clipping Indicator by Level Control
• Main/Strap Feature
• 2 AWG Power Terminals
• 4 AWG Speaker Terminal
• Engineered in U.S.A. and China

Description

Continuous Power	700W x 1 @ 4 ohms
At 14.4V Supply Voltage	1200W x 1 @ 2 ohms
	2000W x 1 @ 1 ohm
Frequency Response	10Hz – 500Hz
Input Sensitivity	200mV – 6V (low level),  500mV – 10V (high level into RCA connectors)
Fuse Ratings	70A @ 4 ohms / 120A @ 2 ohms / 200A @ 1 ohm
Filter Modes	Subsonic and Low Pass
High Pass Filter @ 24dB/Oct	10Hz – 50Hz
Linkwitz-Riley
Low Pass Filter @ 24dB/Oct	50Hz – 500Hz
Linkwitz-Riley
Detented Filter Potentiometers	41 Click-in-Place Frequencies
Remote Level Control	Included
Pass-Through Output	Yes
Height	2.20 in / 56 mm
Depth	7.33 in / 186.3 mm (includes terminals)
Width	13.54 in / 344 mm (includes mounting feet)
