• 1,500W – 2,500W optimal power range
• 3.3 inch high temp voice coil
• Triple stack 378oz motor
• 58lb total weight
• 23.5mm Xmax
• Double high current tinsel leads
• Double blend material spider
• Designed for use in sealed enclosures.
• Engineered in the USA.


Description

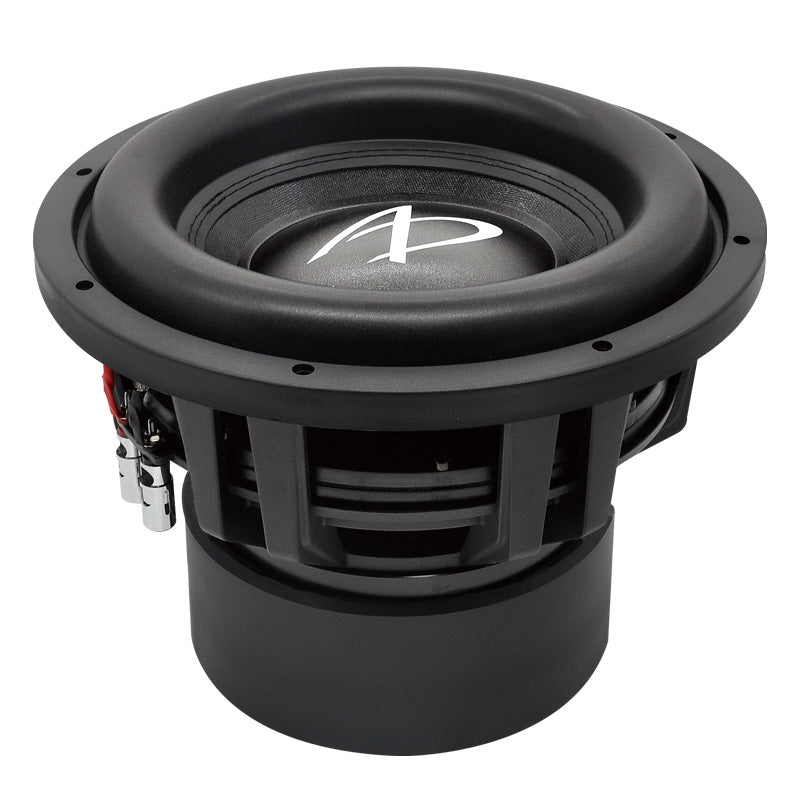

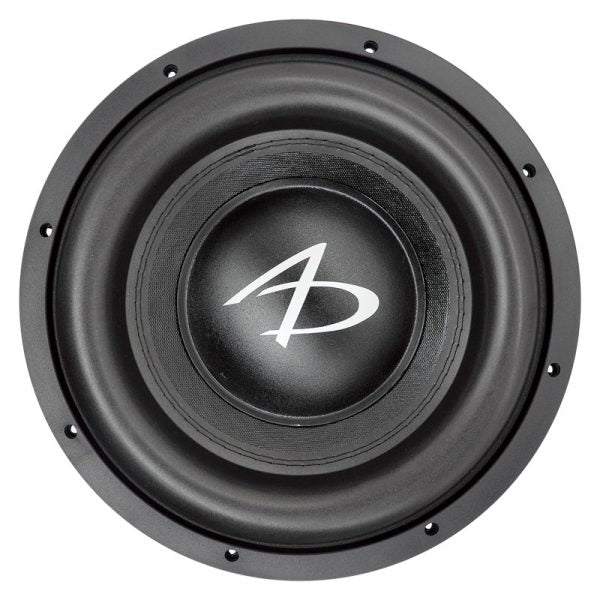

The 5000 series 12 employs a finely-tuned balance of damping and extensive motor force to achieve very high efficiency, offering exceptional versatility and unmatched performance in a variety of real-world functions.

Fs 33.04 Hz
Qms 7.12
Vas 13.99 liters
Cms 0.047 mm/N
Mms 492.8 g
Rms  14.39 kg/s
Dia 241.4 mm
Sd  457.8 sq cm

Qes  0.587
Re 4.29 ohms
Le  4.931 mH
Z   56.35  ohms
BL 27.35 Tm

Qts 0.542
no    0.0829%
SPL 81.24 dB
EBP 56.31

XMax 23.5mm

Nominal Diameter 12in
Overall Diameter 12.99in / 330mm
Mounting Hole Diameter 11.33in / 288mm
Bolt Hole Circle Diameter
Motor Outer Diameter 7.87in / 220mm
Mounting Depth 8.9in / 228mm
Required Pole Vent Clearance
Driver Displacement 0.174 cu ft / 4.927 l

Minimum Sealed Volume N/A
Minimum Vented Volume   cu ft / l net*
