• 1200W Mono Block Class D
• Optional RED Top Plate
• Xtreme Thermal Capacity Heatsink
• Controls Under Reversible Cover
• Click-in-Place Crossover Controls
• Subsonic and Low Pass Filter
• Phase Control 0-180 Degrees
• Wired Level Control with Clipping Indicator

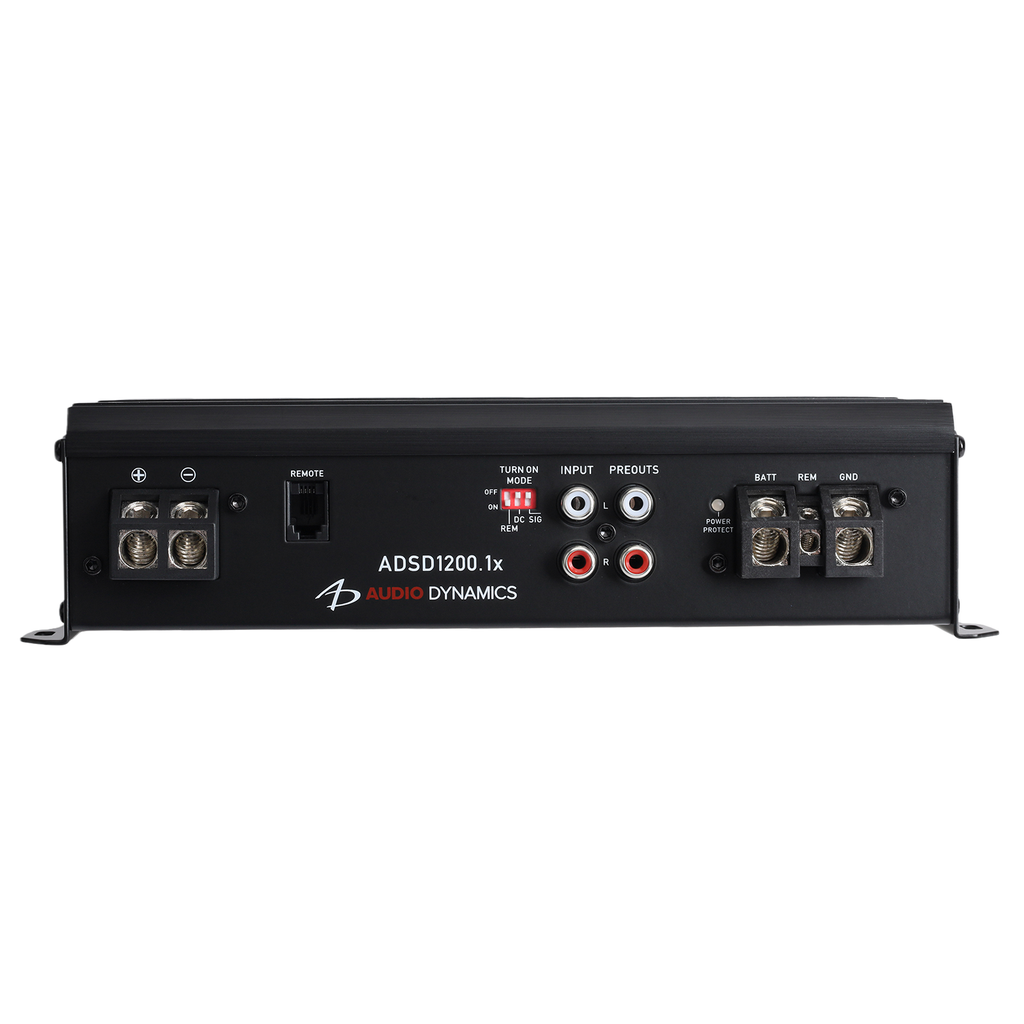

• Low/High Level RCA Inputs
• Auto Turn On
• Clipping Indicator by Sensitivity control
• 4 AWG Power Terminals
• Engineered in U.S.A. and China

Description

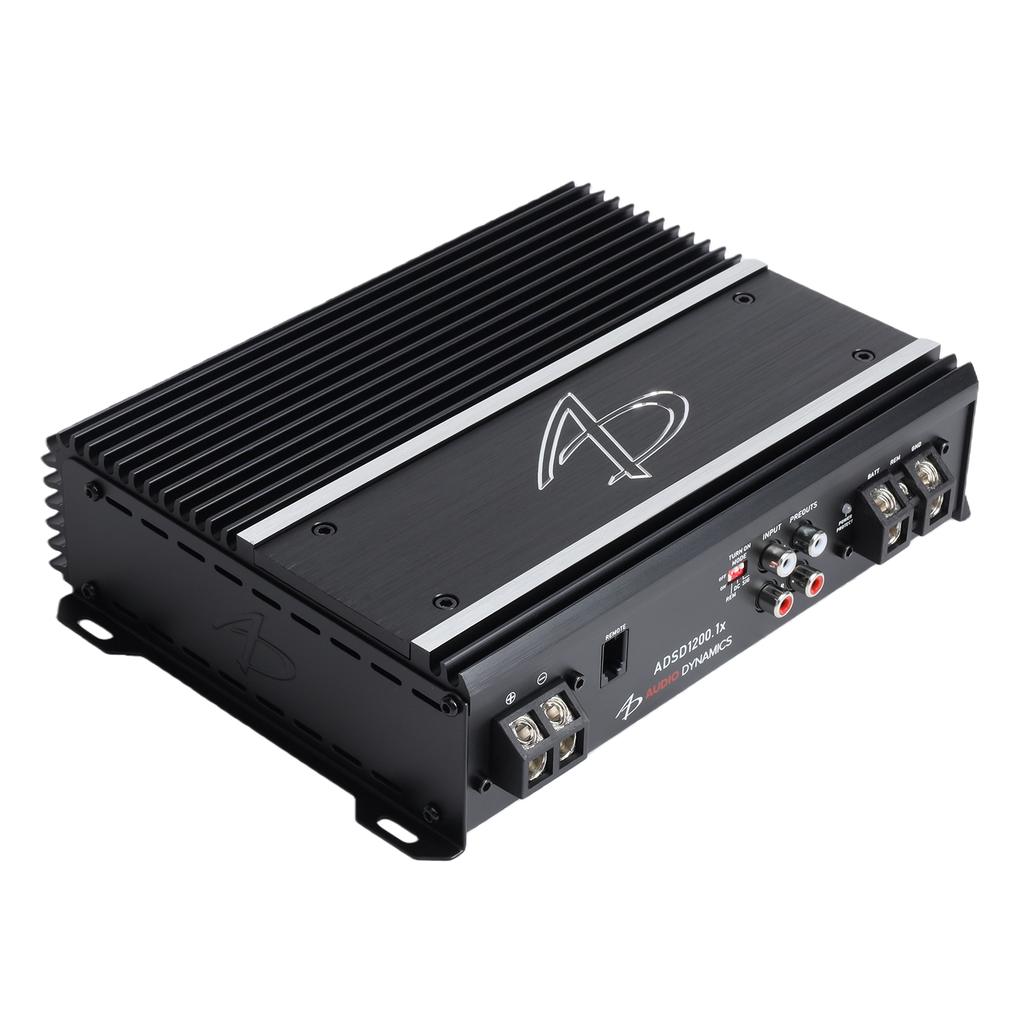

The SDx amplifiers have double the thermal capacity as the original SD amplifiers.

The top plate has also been increased from 1.3mm to 5mm thick. An additional top plate can be purchased in RED.

Continuous Power	500W x 1 @ 4 ohms
At 14.4V Supply Voltage	800W x 1 @ 2 ohms
	1200W x 1 @ 1 ohm
Frequency Response	10Hz – 500Hz
Input Sensitivity	200mV – 6V (low level), 500mV – 10V (high level into RCA connectors)
Fuse Ratings	50A @ 4 ohms / 70A @ 2 ohms / 120A @ 1 ohm
Filter Modes	Subsonic and Low Pass
High Pass Filter @ 24dB/Oct	10Hz – 50Hz
Linkwitz-Riley
Low Pass Filter @ 24dB/Oct	50Hz – 500Hz
Linkwitz-Riley
Detented Filter Potentiometers	41 Click-in-Place Frequencies
Remote Level Control	Included with Clipping Indicator
Pass-Through Output	Yes
Height	2.2 in / 56 mm
Depth	7.33 in / 186.3 mm (includes terminals)
Width	9.37 in / 238 mm (includes mounting feet)
Net Weight	5.54 lb / 2.51 kg
