• 600W Mono Block Class D

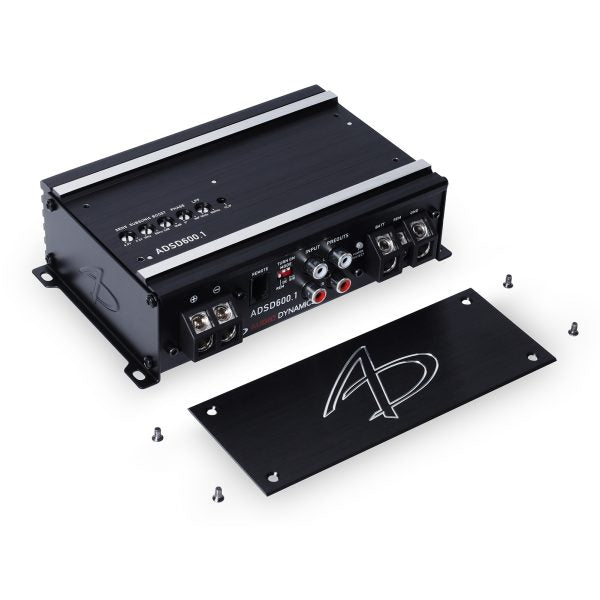

• Controls Under Reversible Cover
• Click-in-Place Crossover Controls
• Subsonic and Low Pass Filter
• Phase Control 0-180 Degrees
• Wired Level Control Included
• Low/High Level RCA Inputs
• Auto Turn On (DC/Signal)
• Clipping Indicator by Level Control
• 4 AWG Power Terminals
• Engineered in U.S.A. and China

Description

Continuous Power	250W x 1 @ 4 ohms
At 14.4V Supply Voltage	400W x 1 @ 2 ohms
	600W x 1 @ 1 ohm
Frequency Response	10Hz – 500Hz
Input Sensitivity	200mV – 6V (low) 500mV – 10V (high level into RCA connectors)
Fuse Ratings	25A @ 4 ohms / 35A @ 2 ohms / 60A @ 1 ohm
Filter Modes	Subsonic and Low Pass
High Pass Filter @ 24dB/Oct	10Hz – 50Hz
Linkwitz-Riley
Low Pass Filter @ 24dB/Oct	50Hz – 500Hz
Linkwitz-Riley
Detented Filter Potentiometers	41 Click-in-Place Frequencies
Remote Level Control	Included
Pass-Through Output	Yes
Height	1.98 in / 50.23 mm
Depth	4.5 in / 114.3 mm (includes terminals)
Width	7.0 in / 178 mm (includes mounting feet)
