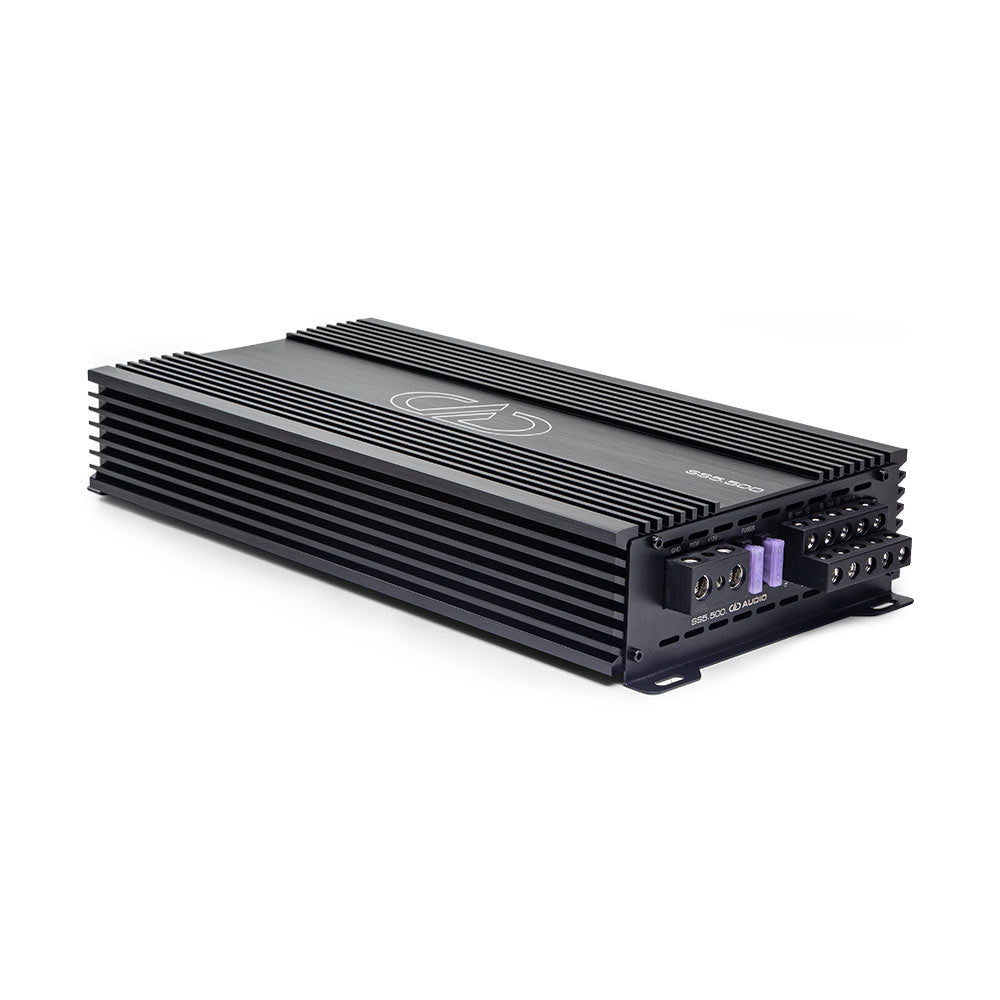

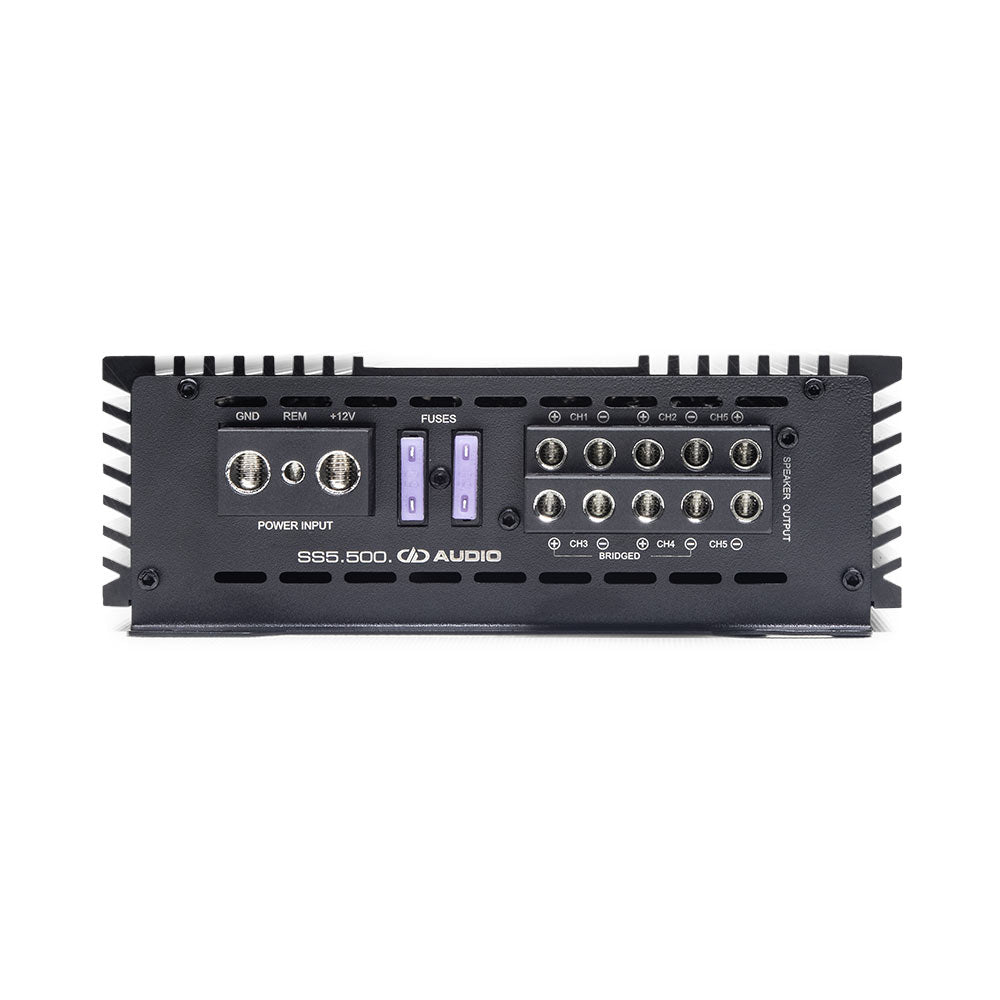

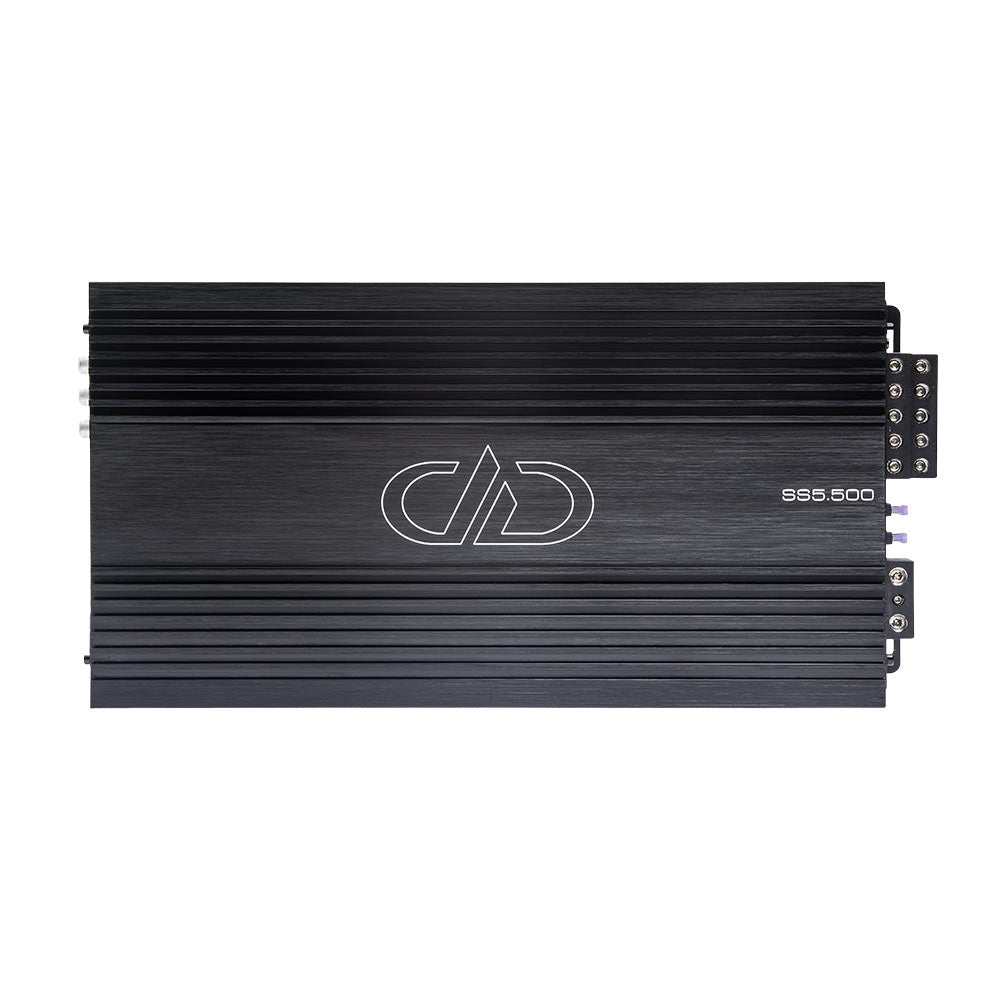

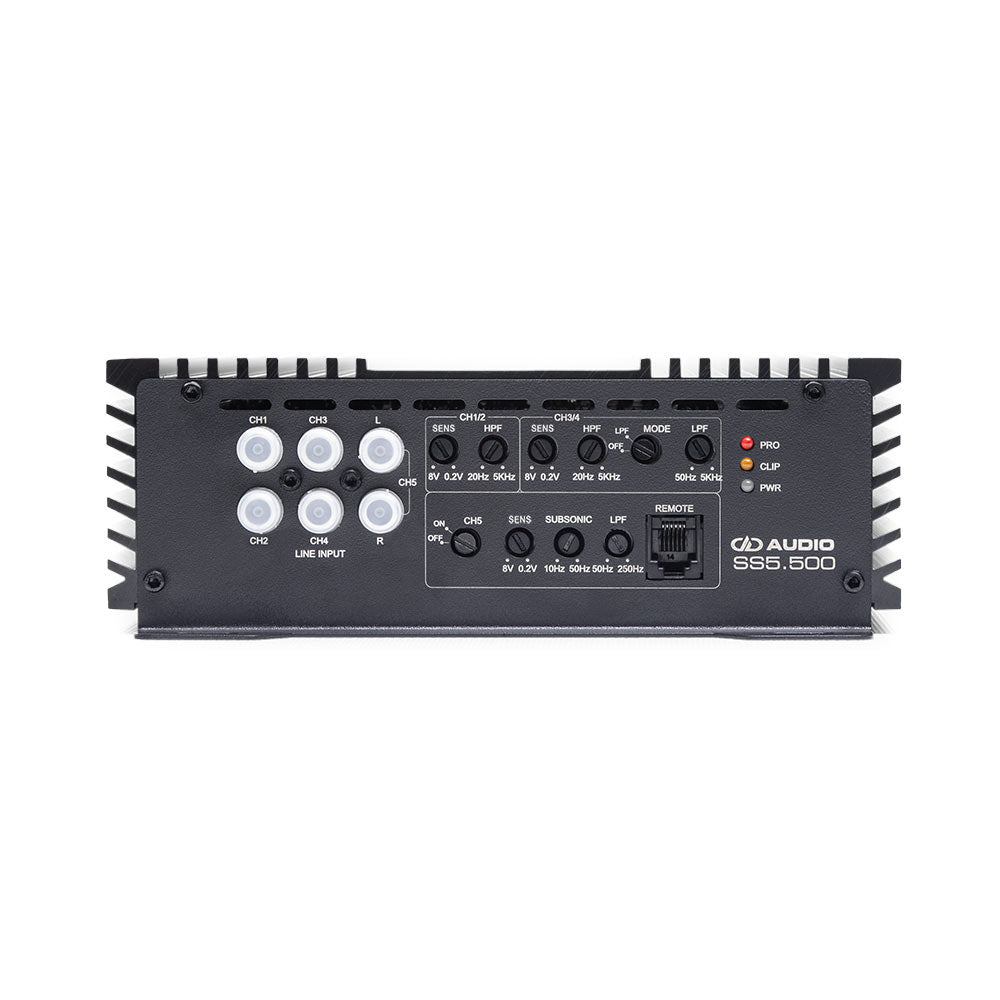

DIGITAL DESIGNS SS5.500
$329.99 USD
Amplifier Specs
| Operating Voltage: | 9 - 16 |
| Test Voltage: | 14.4 |
| Input Channel(s): | 6 |
| Output Channel(s): | 5 |
| Continuous Wattage @4ohm: | 80 x 4 |
| Continuous Wattage @2ohm: | 120 x 4 |
| Continuous Wattage @1ohm: | 500 x 1 |
| Max Current Draw (Amps): | 100 |
| RCA Input Voltage Sensitivity: | 8 - 0.2 |
| High-Level Input Voltage Sensitivity: | 20 - 1.1 |
| RCA Input S/N: | > 95 |
| Damping Factor: | > 100 |
| THD: | < 1.0% |
| Frequency Response (Hz): | 20 - 20k |
| High Pass Filter: | 20 - 5k |
| Sub-Sonic Filter: | 10 - 50 |
| Low-Pass Filter: | 50 - 5k |
| Remote Control: | Remote Included in Box |
| Power Wire Gauge: | 4 |
| Speaker Wire Gauge: | 12 |
| Dimensions (Inches): | 13.5 x 7.3 x 2.4 |
| Dimensions (MM): | 340 x 185 x 60 |
| Shipping Weight (Lbs): | 5 |
